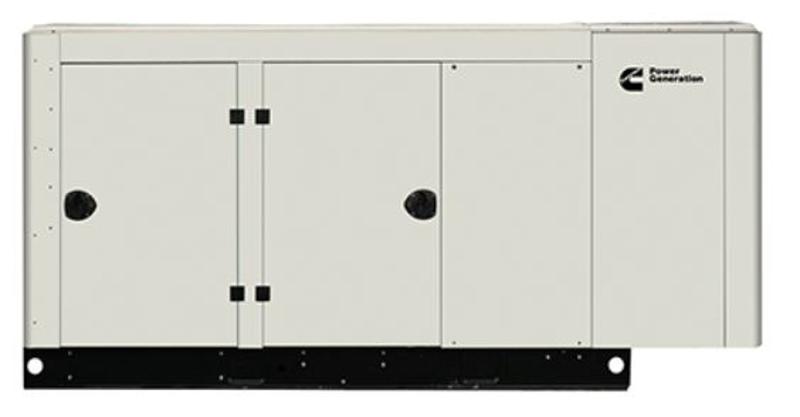

C100D6 100kW Quiet Connect Diesel Generator w/ Level I Sound Attenuated Enclosure (24 Hour Fuel Tank)
Return to Primary ProductSpecifications:
| Model | Model Number | Fuel | Voltage (V) |
kW | Circuit breaker (Amps) |
|---|---|---|---|---|---|
| C100D6C | A063P977 | Diesel | 120/240V, 1PH | 100 | 600 |
Features and Benefits
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engines - Rugged 4-cycle industrial diesel engines deliver reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearingshort-circuit capability.
- Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection.
- Cooling system - Standard cooling package provides reliable running at up to 122 °F (50 °C) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Enclosures - The aesthetically appealing enclosure incorporates special designs that deliver one of the quietest generators of its kind.Aluminum material plus durable powder coat paint provides the best anti-corrosion performance. The generator set enclosure has been evaluated to withstand 180 MPH wind loads in accordance with ASCE7-10.
- Fuel tanks - Two dual wall sub-base fuel tank series are offered as optional features, providing economical and flexible solutions to meet extensive code requirements on diesel fuel tanks.
C100D6 Generator Spec Sheet
C100D6 Generator Outline Drawing
C100D6 Generator Fuel Tank Drawing
C100D6 Generator Installation Manual
C100D6 Generator Operators Manual
C100D6 Generator Parts Manual
$33,651.00
C100D6C
Quiet Connect Diesel 24 Hour Tank
Cummins / Onan
A063P977
