Features
Cummins diesel engines
• U.S. Tier IV Final and EU SIIIa certified Cummins QSB5-G11 engines which meet emissions limits without the use of a diesel particulate filter (DPF)
• Dual speed engine for operation at 50 or 60 Hz
• Advanced electronic engine controls with integrated aftertreatment system provide superior fuel efficiency while reducing emissions
• High-pressure common rail fuel system reduces engine noise and smoke
• Cummins Direct Flow™ air filtration offering improved air management, longer service life, and easier serviceability
• 2-stage fuel filtration with optimum particle and water separation Control features
• The most advanced, reliable and capable generator set control system on the market today
• Controls provide precise frequency and voltage regulation, alarm and status message display in one easy to operate customer interface Stamford alternators
• 12-lead reconnectable alternators fitted with voltage selection switch
• Permanent magnet excitation for improved performance in non-linear load applications
Engine controls
• Oil pressure and coolant temperature gauge
• Fuel level gauge, Diesel Exhaust Fluid (DEF) level gauge and battery voltage gauge
• Digital Hour meter (5-digit read out)
• Engine control module includes remote start capability
Rental package enclosure
• Camlock & busbar distribution panel
• Sound attenuated, white powder coated lockable enclosure
• 24-hour fuel tank (75% prime) with leak detection sensor
• Single wall fuel tank with 110% fluid containment basin
• Transport Canada Tank
• Roof mounted, single point lift
• Cooling system rated for 122 °F (50 °C) at 100% standby ambient
• Complete engine fluid containment reservoir
• 4 position voltage selector switch (60Hz: 277/480 or 139/240 or 120/208 VAC 3 phase or 120/240 VAC 1 phase). Also first position 50Hz: 230/400 VAC 3 phase)
• 2 position voltage selector (60Hz: 277/480 or 347/600 VAC 3 phase).
• Shore power (15A/120V) – for coolant heater, battery charger, engine oil heater and battery warmer
• Conveniently located analog gauges and heated Human Machine Interface (HMI) display
Rental package options
• Optional Auxiliary Fuel and DEF connections
• DOT approved electric brake trailer with heavy duty center mounted jack, ball or pintle hitch
• DOT approved hydraulic brake trailer with heavy duty center mounted jack, ball or pintle hitch

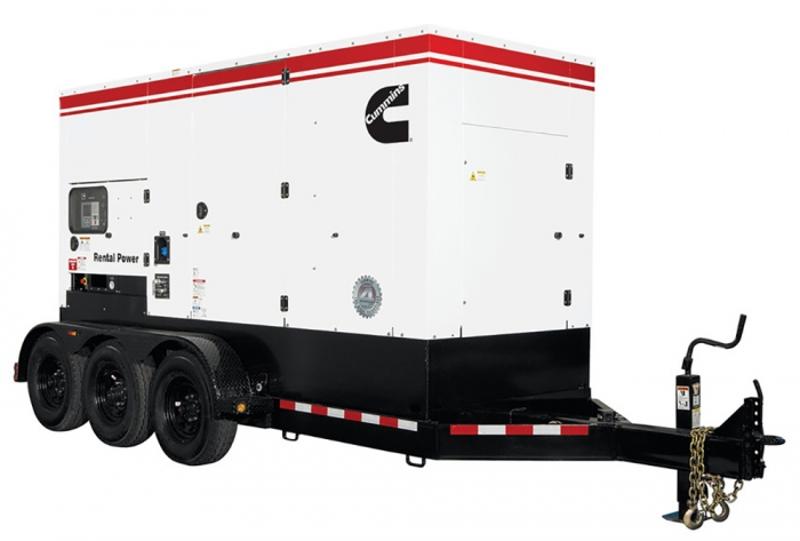

C275 D2RE Generator Specification Sheet

C275 D2RE Generator Outline Drawing

Cummins Diesel Towable Video

Cummins Diesel Towable Parallelling Video
