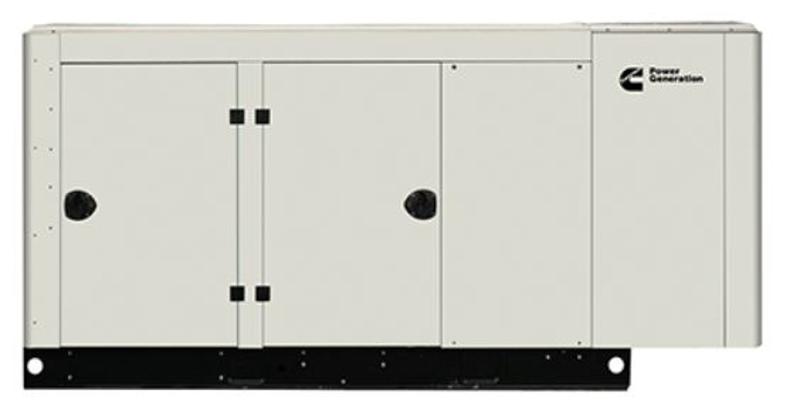

C80D6 80kW Quiet Connect Diesel Generator w/ Level I Sound Attenuated Enclosure (No Fuel Tank)
Return to Primary ProductSpecifications:
| Model | Model Number | Fuel | Voltage (V) |
kW | Circuit breaker (Amps) |
|---|---|---|---|---|---|
| C80D6C | A063P969 | Diesel | 120/240V, 1PH | 80 | 400 |
Features and Benefits
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engines - Rugged 4-cycle industrial diesel engines deliver reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearingshort-circuit capability.
- Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection.
- Cooling system - Standard cooling package provides reliable running at up to 122 °F (50 °C) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Enclosures - The aesthetically appealing enclosure incorporates special designs that deliver one of the quietest generators of its kind.Aluminum material plus durable powder coat paint provides the best anti-corrosion performance. The generator set enclosure has been evaluated to withstand 180 MPH wind loads in accordance with ASCE7-10.
C80D6 Generator Spec Sheet
C80D6 Outline Drawing
C80D6 Generator Installation Manual
C80D6 Generator Operators Manual
C80D6 Generator Parts Manual
$34,653.00
C80D6C
Quiet Connect Diesel No Fuel Tank
Cummins / Onan
A063P969
